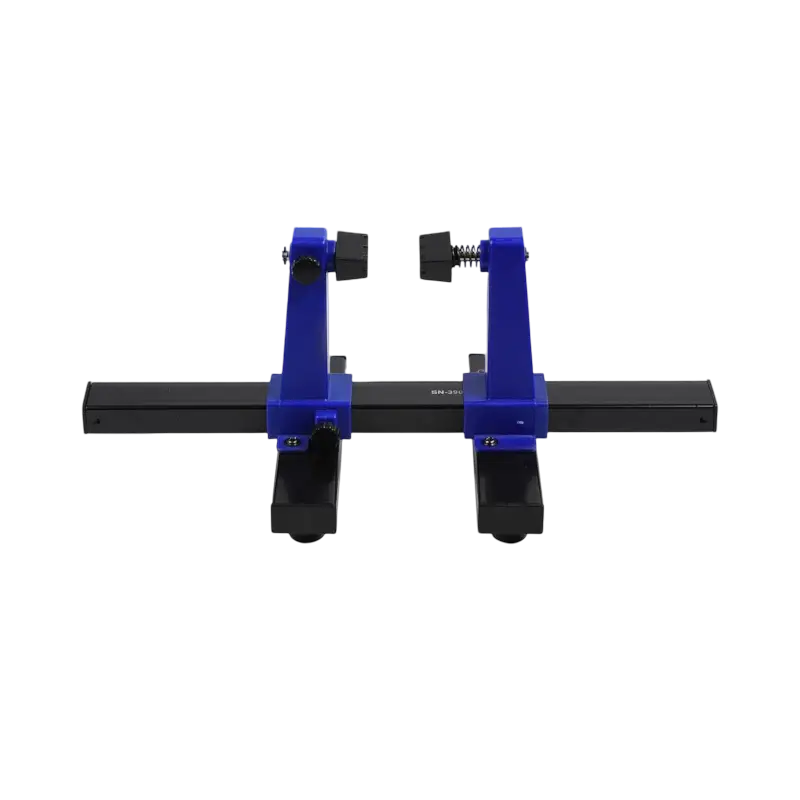

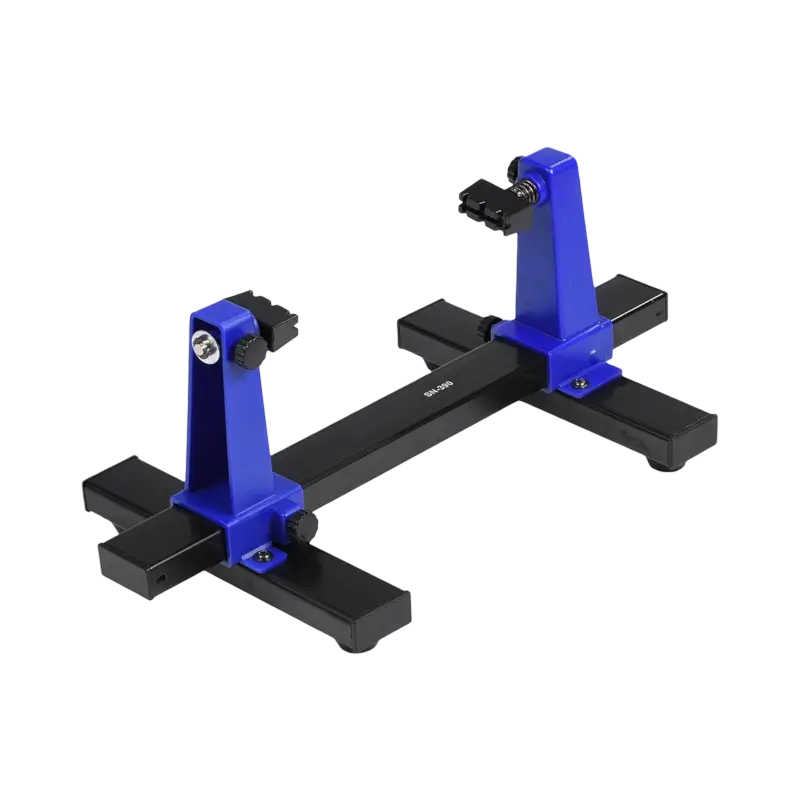

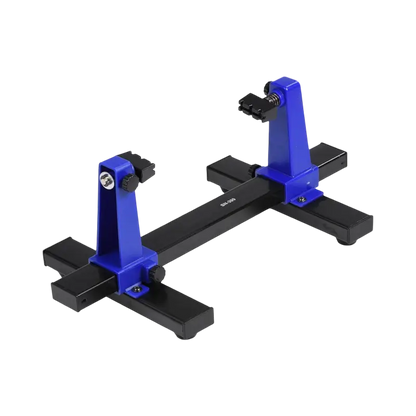

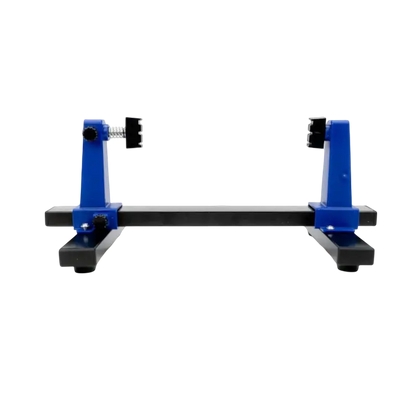

SN-390 Adjustable PCB Holder and Circuit Board Clamping Tool for Soldering

Keep printed circuit boards supported during soldering, repair, and electronics work with the SN-390 Adjustable PCB Holder. Its metal base and adjustable clamping supports help hold a PCB in position while you work on components and connections.

The holder features movable supports and screw-adjusted clamps to accommodate different board sizes. Its design also allows the clamping position to be adjusted for easier access to the work area.

Key Features

• Model: SN-390
• Adjustable clamping supports: Position the supports to suit the circuit board being worked on.
• Metal base: Provides the main supporting frame.
• Plastic holders: Support the board at the clamping points.
• Multiple PCB thickness options: Designed for boards approximately 1.2 mm, 1.8 mm, 2 mm, and 3 mm thick.
• Maximum PCB dimensions: Approximately 20 × 14 cm.
• Adjustable working position: The clamping arrangement can be repositioned to provide access to different areas of the board.

Specifications

• Model: SN-390
• Material: Plastic holders and metal base
• Maximum PCB size: 20 × 14 cm (7.9 × 5.5 inches)
• Supported PCB thicknesses: 1.2 mm, 1.8 mm, 2 mm, and 3 mm
• Approximate holder dimensions: 30 × 16.5 × 12.5 cm
• Approximate weight: 657 g

Package Contents

• 1 × SN-390 PCB holder

Important: Check your circuit board's dimensions and thickness before purchasing. The circuit board and soldering tools shown or used with the holder are not included.
