Analog Joystick Potentiometer V2 10K for PS4 DualShock 4 Controller Replacement

Analog Joystick Potentiometer V2 10K for PS4 DualShock 4 Controller

Repair analog stick drift, unwanted movement, or poor joystick response with this replacement V2 Analog Joystick Potentiometer for Sony PlayStation controllers.

The potentiometer is the internal sensor component attached to the analog joystick mechanism. When it becomes worn or damaged, your controller may experience analog stick drift, automatic movement in one direction, inaccurate movement, or failure to register movement correctly.

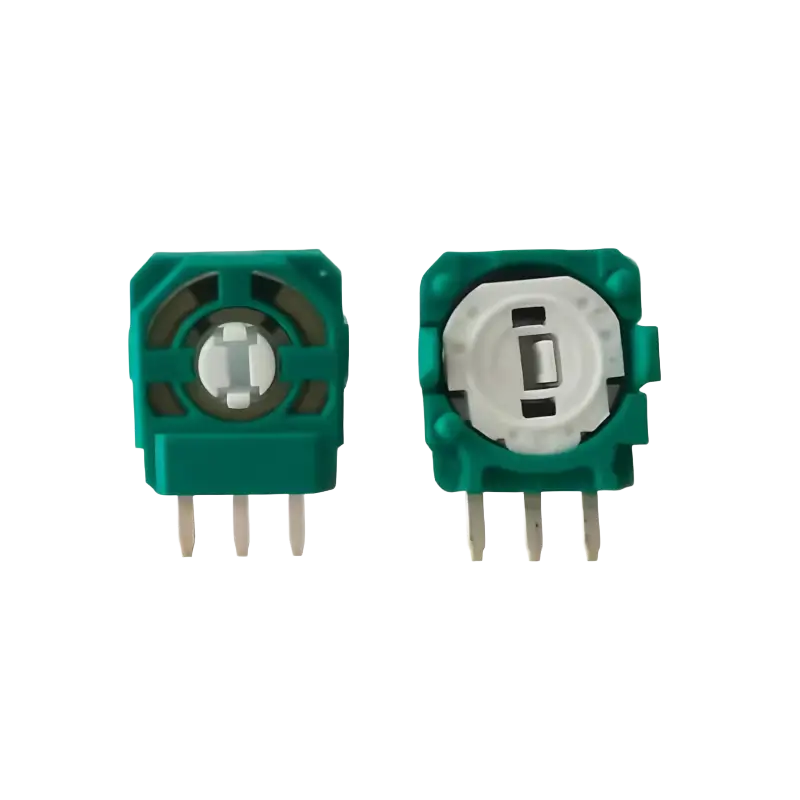

This replacement V2 potentiometer features a white center and is designed for compatible analog joystick modules. It can be used for either the left or right analog stick and for either movement axis, depending on the compatible controller module.

The potentiometer is commonly used in DualShock 4 controllers and is also compatible with supported DualSense and Xbox controller analog modules. Compatibility should be verified visually by checking the original potentiometer before purchasing.

Key Features

• Replacement analog joystick potentiometer.
• V2 version with white center.
• 10K Ohm potentiometer specification.
• Helps repair analog stick drift.
• May fix automatic joystick movement.
• Helps restore accurate analog movement.
• Can replace a worn or damaged potentiometer.
• Can be used on left or right analog sticks.
• Can be used for vertical or horizontal axis repair.
• Approximately 13mm size.
• Requires soldering for installation.
• Suitable for professional controller repair and experienced users.

Common Problems It May Help Fix

A faulty or worn potentiometer may cause:

• Analog stick drift.
• Automatic movement in one direction.
• Character moving without touching the controller.
• Incorrect analog stick movement.
• Poor joystick response.
• Movement not registering in one direction.
• Inconsistent analog control.

Replacing the potentiometer may help restore normal operation when the fault has been correctly diagnosed.

Compatible DualShock 4 Models

Recommended for compatible Sony DualShock 4 controllers including:

• JDM-001.
• JDM-010.
• JDM-020.
• JDM-030.
• JDM-040.
• JDM-050.
• JDM-055.

Also Compatible With Supported Controllers

Depending on the original analog module and potentiometer version, this type may also fit:

• Sony DualSense CFI-ZCT1.
• Sony DualSense CFI-ZCT1A.
• Microsoft Xbox One Model 1537.
• Microsoft Xbox One Model 1697.
• Microsoft Xbox One Model 1708.
• Microsoft Xbox One Elite Series 1 Model 1698.
• Microsoft Xbox Series Model 1914.
• Microsoft Xbox Elite Series 2 Model 1797.

Compatibility must be verified by checking the original potentiometer visually before ordering.

How to Identify the Correct Version

For controller analog potentiometers, the version should be identified by inspecting the original part after opening the controller.

• White center: V2 or compatible V3 type.
• Black center: V1 type.

Do not select the potentiometer based only on the controller model or external controller housing.

Please compare your original part with the product before purchasing.

Product Specifications

Package Contents

• 1 × V2 10K Analog Joystick Potentiometer.

Important Notes

• This product includes one potentiometer only, not a complete analog joystick module.
• The controller must be opened to replace the part.
• Soldering is required.
• Basic electronics and controller repair experience are recommended.
• Please verify the color, shape, pin layout, and specifications of your original potentiometer before ordering.
• Analog stick drift can also be caused by other parts of the analog joystick module or controller circuitry.
• Resistance tolerance may vary between individual potentiometers.
• After replacement, calibration or matching the potentiometer characteristics may be required if the analog stick does not center correctly.
