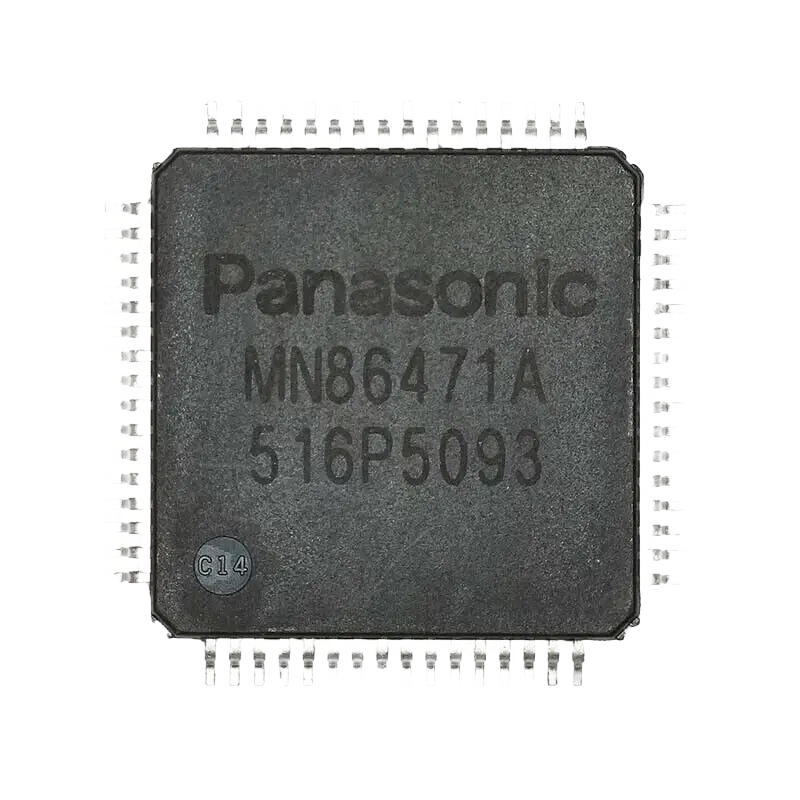

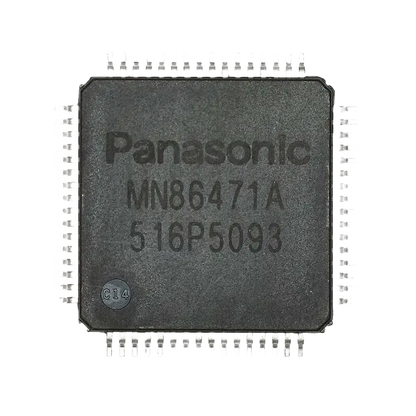

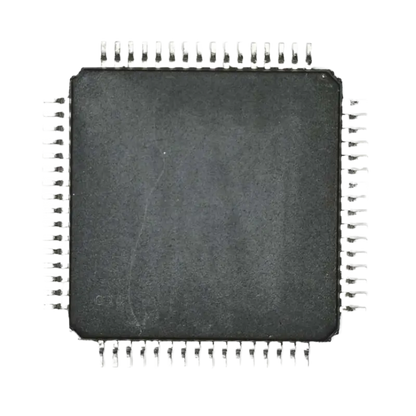

MN86471A HDMI Encoder Video IC Chip for PS4 FAT CUH-10XX / CUH-11XX

MN86471A HDMI Encoder Video IC Chip for PS4 FAT CUH-10XX / CUH-11XX

Repair HDMI video output problems on your Sony PlayStation 4 FAT with this MN86471A HDMI Encoder Video IC Chip.

The MN86471A is an HDMI encoder and video processing IC used in compatible original PS4 FAT motherboards. This replacement chip is suitable for consoles in the CUH-10XX, CUH-11XX series that use the MN86471A chip.

If the original HDMI encoder IC is damaged or faulty, the console may experience problems such as no picture, no HDMI signal, or unstable video output. Replacing the faulty MN86471A IC can help restore normal HDMI video functionality after proper motherboard diagnosis.

This is a brand-new replacement IC intended for professional board-level console repair. Installation requires advanced SMD/BGA soldering skills and appropriate repair equipment.

Key Features

• MN86471A HDMI Encoder Video IC.
• Designed for compatible PS4 FAT consoles.
• Compatible with CUH-10XX series.
• Compatible with CUH-11XX series.

• Used for HDMI video signal processing.
• Replacement for a damaged or faulty original MN86471A chip.
• Suitable for board-level HDMI repairs.
• May help restore HDMI video output after correct diagnosis.
• Brand-new replacement component.

Compatible Models

Compatible with supported Sony PlayStation 4 FAT consoles:

• PS4 FAT CUH-10XX.
• PS4 FAT CUH-11XX.


Please verify that your original motherboard uses the MN86471A chip before purchasing.

Common Repair Applications

May be used when diagnosing and repairing:

• No picture through HDMI.
• No HDMI signal.
• Black screen with a working console.
• Unstable or intermittent video output.
• HDMI video signal processing faults.
• Damaged or faulty MN86471A HDMI encoder IC.

Similar problems can also be caused by a damaged HDMI port, HDMI filters, ESD protection components, or other faults on the motherboard. Proper diagnosis is required before replacing the IC.

Product Specifications

Package Contents

• 1 × MN86471A HDMI Encoder Video IC Chip.

Important Notes

• This product includes the MN86471A IC chip only.
• Designed for compatible PS4 FAT motherboards using the MN86471A chip.
• Please check the original chip marking before ordering.
• Professional installation is strongly recommended.
• Advanced board-level repair skills and suitable soldering equipment are required.
• Proper diagnosis should be completed before replacing the IC.
• Incorrect installation may cause additional motherboard damage.
